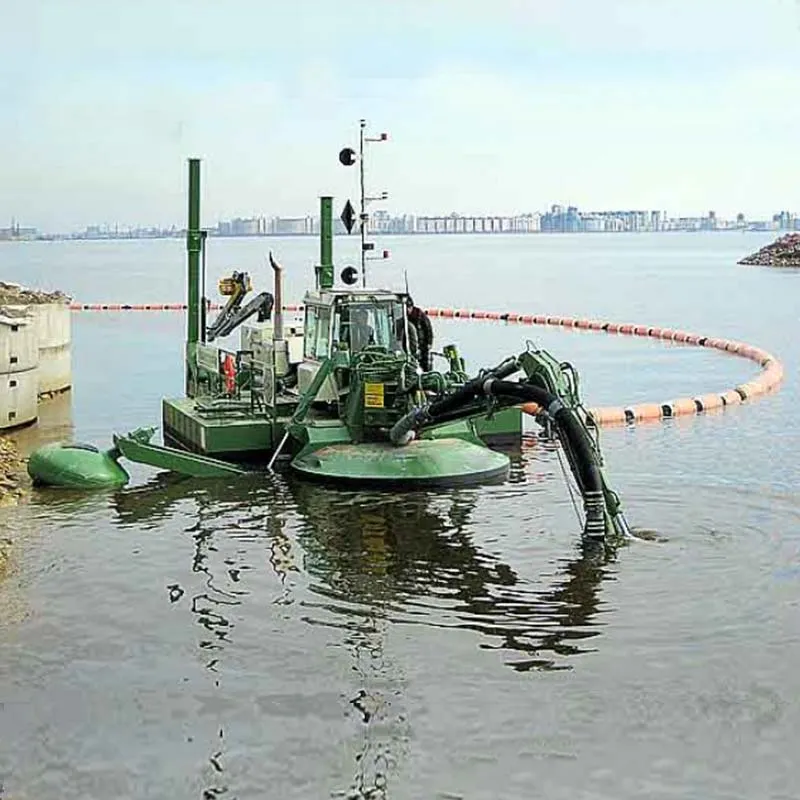

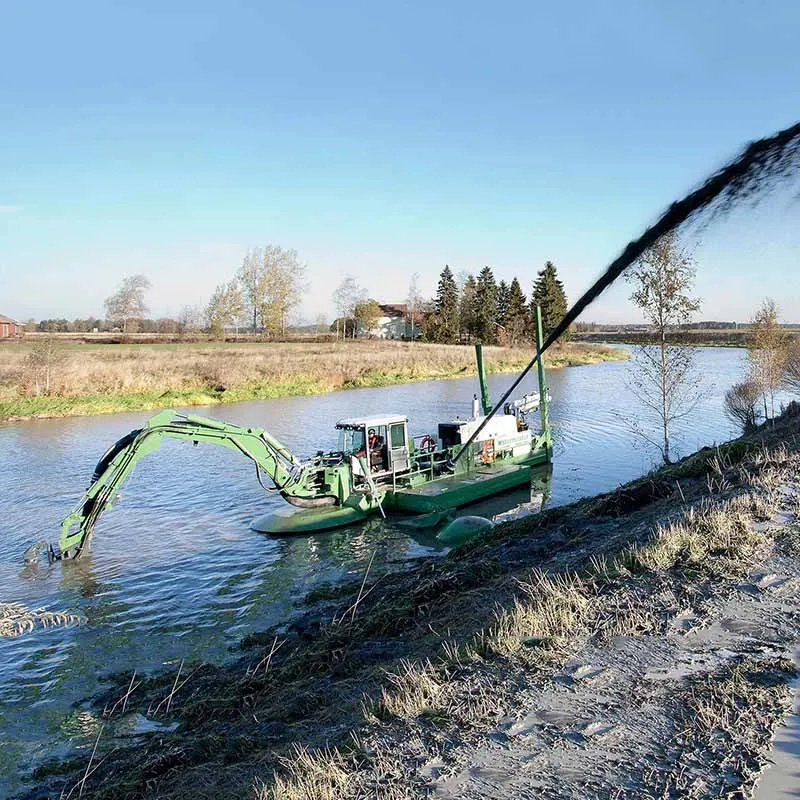

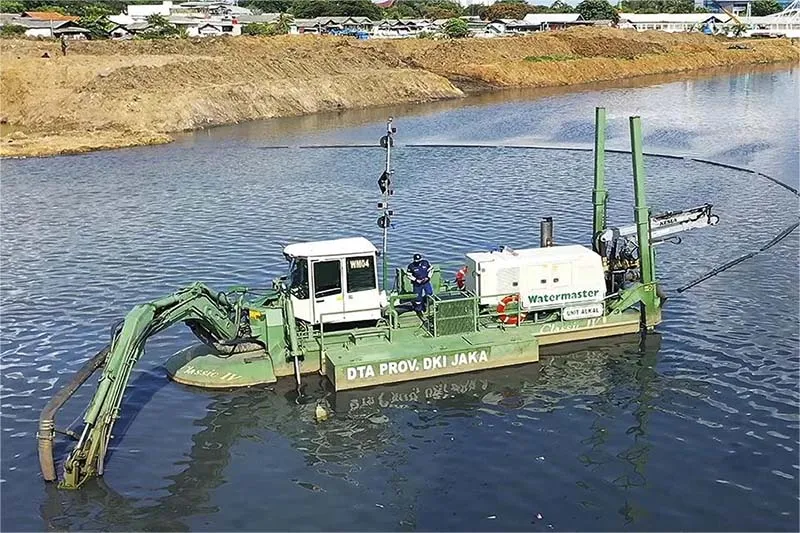

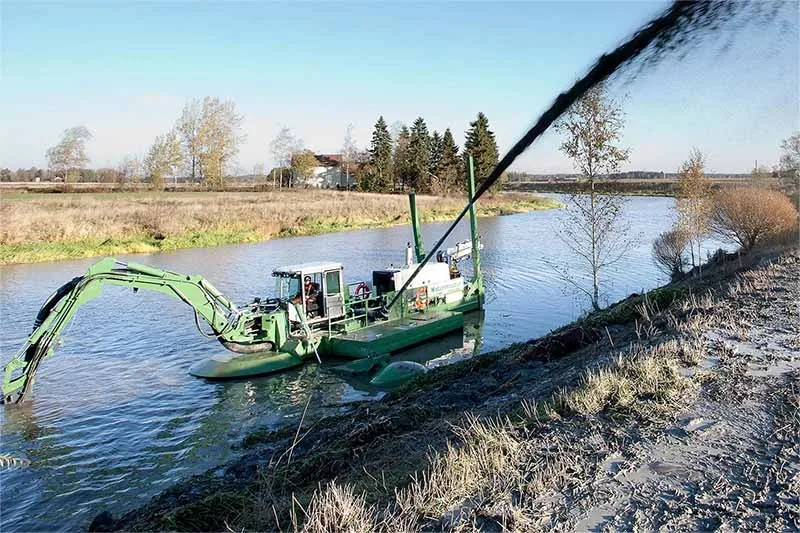

Amphibious Multipurpose Dredger

Able to perform dredging, digging, piling, raking operations with mobility in water and on land

Amphibious Multipurpose Dredger
  • Amphibious Multipurpose Dredger
  • Amphibious Multipurpose Dredger
  • Amphibious Multipurpose Dredger

    • Dredging Vessels

    Amphibious Multipurpose Dredger

    Able to perform dredging, digging, piling, raking operations with mobility in water and on land
    • Dredging depth
      Dredging depth
      Dredging depth: up to 7 meters

    Our Amphibious Dredger is the perfect solution for your shallow water projects. It combines multiple functions cutter suction, excavation, grab dredging, piling, and vegetation removal into one versatile dredger. Whether you’re working in coastal mudflats, lakes, inland rivers, canals, reservoirs, or industrial sedimentation ponds, this dredger can handle it all with ease.

    For a reliable, multifunctional dredger that meets your project needs, contact us today to learn more about how our Amphibious Dredger can support you!

    Request a Quote
    Applications

    The Amphibious Multipurpose Dredger can be used for the following:

    • Dredging and sediment removal in urban and rural rivers, lakes, and ponds
    • Comprehensive management of small water systems
    • Agricultural water conservancy projects
    • Flood control and emergency rescue operations
    • Sludge engineering construction
    • Wetland and reed bed management
    • Dock maintenance and expansion
    • Water management construction in other harsh conditions
    Specifications
    Dimensions (L×W×H) 11×3.3×3.1m 13×3.5×3.1m
    Working capacity 400m³/h 900m³/h
    Engine power 194kW 335kW
    Max. operating pressure 25MPa 25MPa
    Excavator
    Swing angle 180° 180°
    Bucket cylinder force 80kN 80kN
    Dredge Pump
    Outlet diameter 200mm 250mm
    Dredging depth 6m 7m
    Output distance 1000m 1000m
    Water flow 400m³/h 900m³/h
    Features
    • Multifunctional Operation: Combines backhoe dredging, cutter suction dredging, salvage, and piling operations in one machine
    • Amphibious Capability: No need for additional equipment can "walk in and out" of the water using its built-in propulsion system for amphibious operations
    • Extended Discharge Distance: Discharge distance can reach up to 1,500 meters, with the option to connect to remote booster pumps for extended reach.
    • Efficient Mobility and Anchoring: No winches or cables, providing excellent mobility and anchoring capabilities for efficient work shifts.
    • Stabilized Operation: Equipped with a four-point hydraulic stabilizer system to ensure smooth and stable operation throughout the dredging process.
    Detailed Features

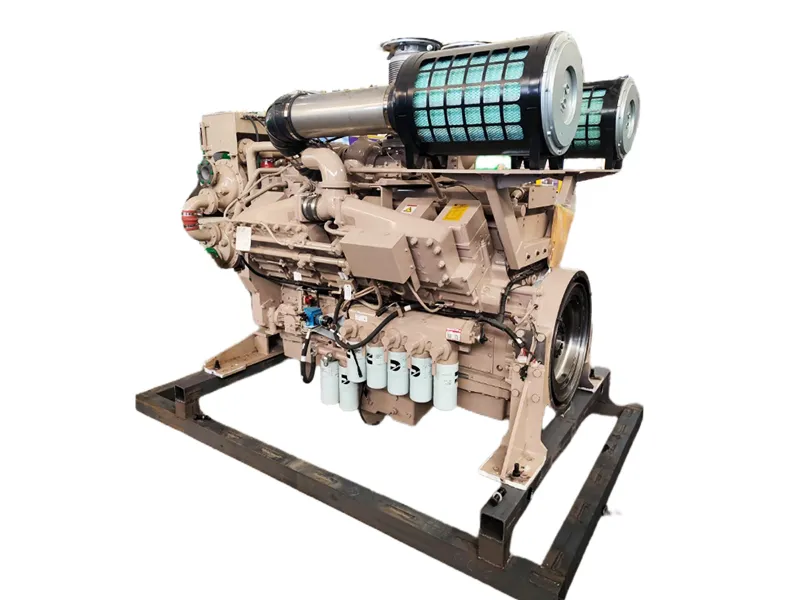

    Diesel Engine
    Diesel Engine

    Brands: Cummins, Mitsubishi, Weichai

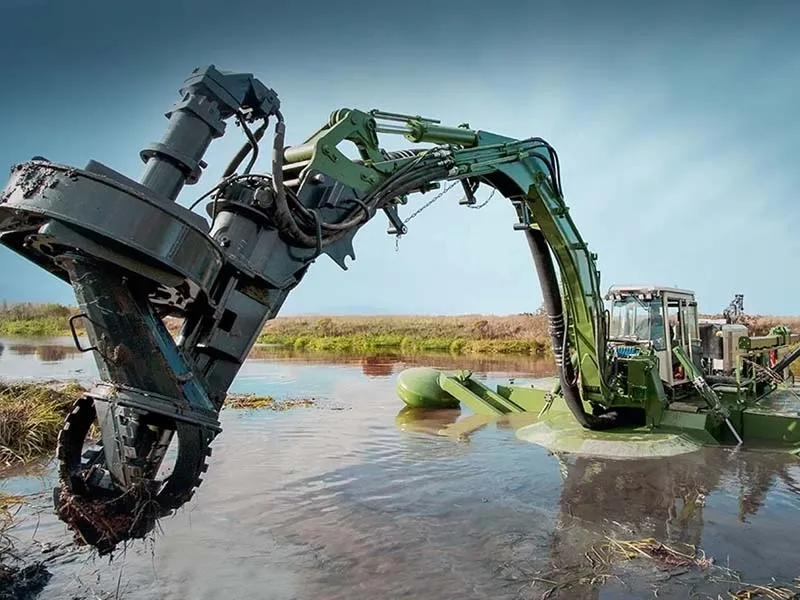

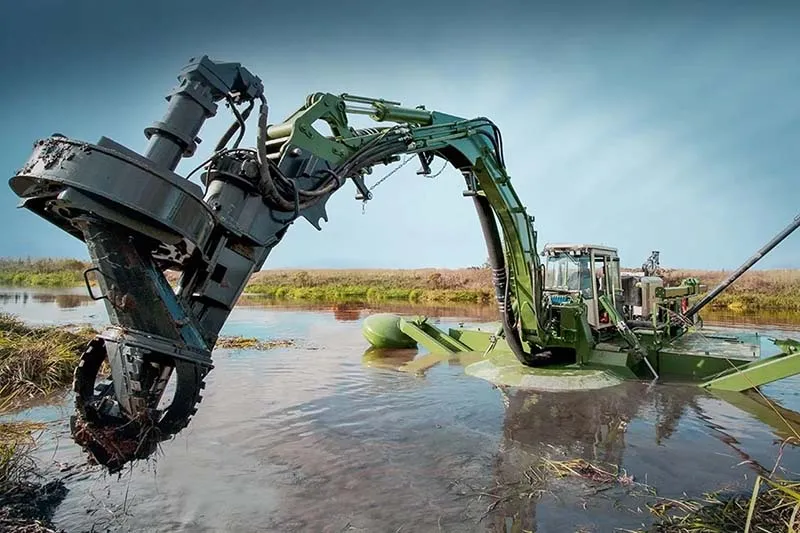

    Multifunctional Workhead
    Multifunctional Workhead

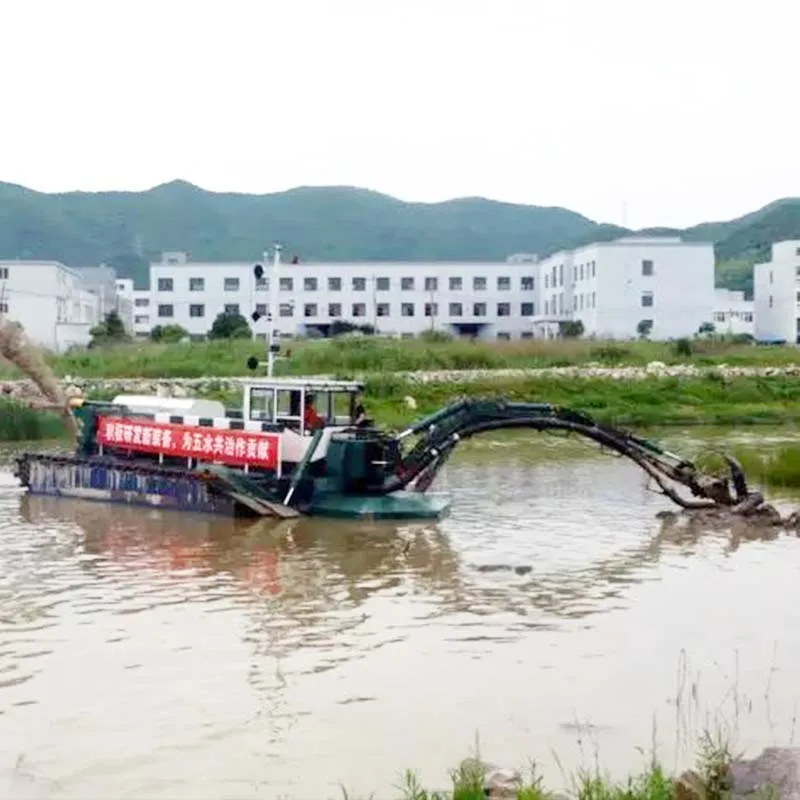

    Customer Case Studies
    Customer Case Studies

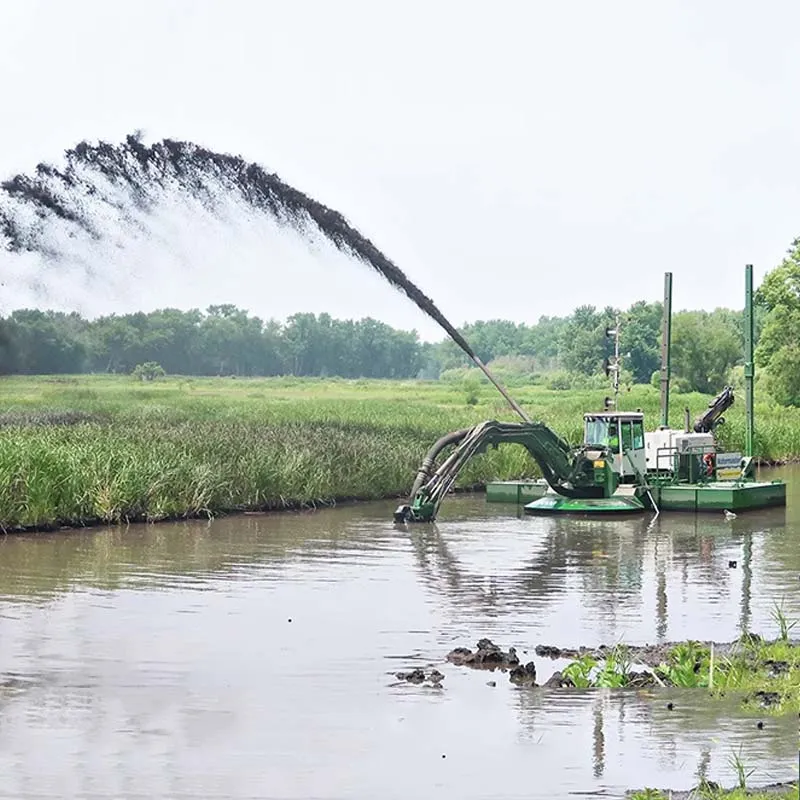

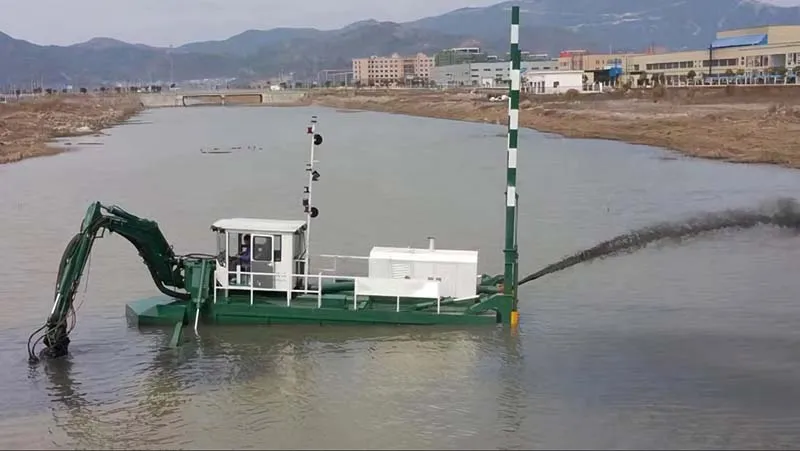

    A 6-inch pump with a discharge distance of 500 meters and a handling capacity of 400 cubic meters per hour is being used for river channel dredging.
