Mining dredgers are specialized vessels designed for underwater mining and mineral processing operations. There are several types of mining dredgers, each suited for different mining needs:

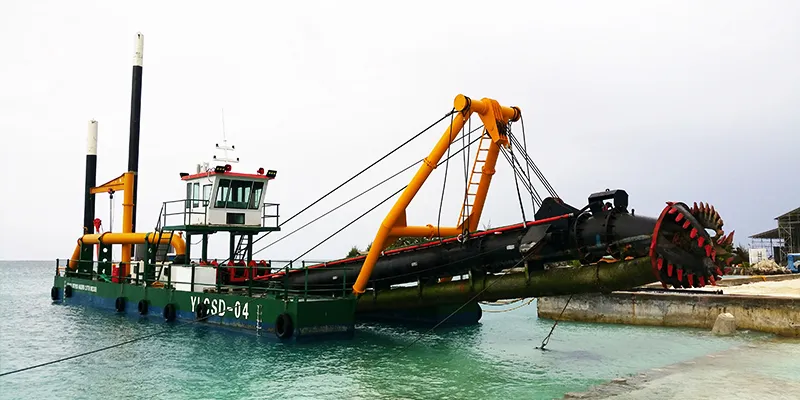

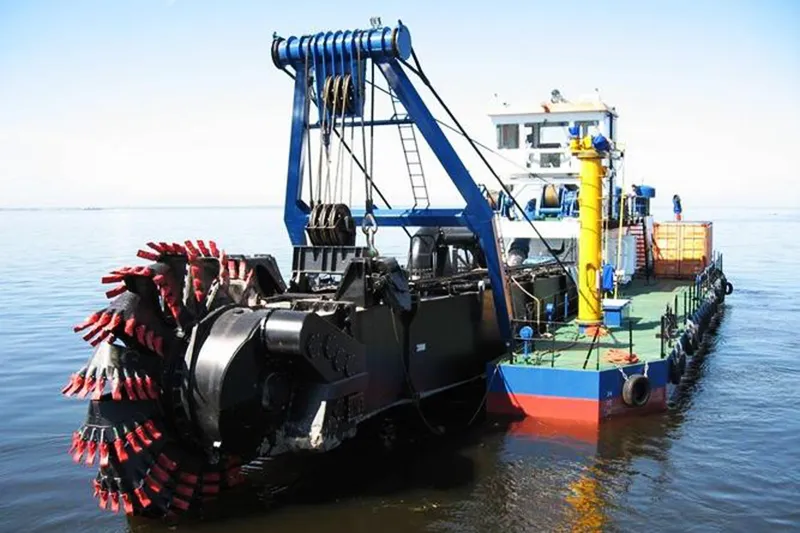

  • Cutter Suction Mining Dredger: Utilizes a rotating cutter head to cut underwater ore, mixing it with water to form slurry, which is then sucked up and transported to the vessel's processing equipment for further processing.
  • Jet Suction Mining Dredger: Uses the suction power generated by a sand pump to lift ore-containing sediment from the bottom, which is then transported through pipes to the vessel for screening and mining operations.
  • Bucket Ladder Mining Dredger: Powered by a motor-driven gearbox that rotates a chain of buckets, excavating ore from the seafloor and lifting it to the vessel, where it is processed through screening and mining systems to separate valuable minerals.

Structure Components

  • Excavation System: This includes components such as the bucket, chain, arm for bucket ladder dredgers and cutter heads for cutter suction dredgers. These parts are responsible for digging up ore from the seafloor.
  • Mineral Processing System: This system includes screening, flotation, gravity separation, and magnetic separation equipment to sort, separate, and purify the extracted ore.
  • Power System: Typically powered by diesel engines, generators, or electric motors, the power system drives the dredging, mining, and transportation operations on the vessel.
  • Transport System: Includes conveyor belts, chutes, and pipelines to transport extracted ore or processed minerals to designated locations.

Features

  • High Mobility: Mining dredgers can be relocated to different areas based on ore distribution, offering more flexibility compared to land-based mining facilities. They adapt well to changing mineral resources across various water bodies.
  • Versatility: They are equipped to handle various types of ore, grain sizes, grades, and mining conditions, offering adaptability to a wide range of complex mining and processing needs.
  • High Integration: These dredgers integrate mining and processing functions into a single, efficient system, enabling the entire process—from ore extraction to concentrate recovery—onboard, which significantly boosts productivity.

Applications

  • Rivers and Lakes: Used for extracting sand gold, tin, and other minerals from the riverbed.
  • Shallow Seas: Applied in shallow coastal waters to mine resources such as diamond and titanium ore from the seabed.

We can provide classification society certificates from China, Russia, the USA, France, Germany, Italy, and other countries based on customer requirements.

Feel free to reach out to us today to learn more about how our mining dredgers can support your mineral extraction and processing projects!
