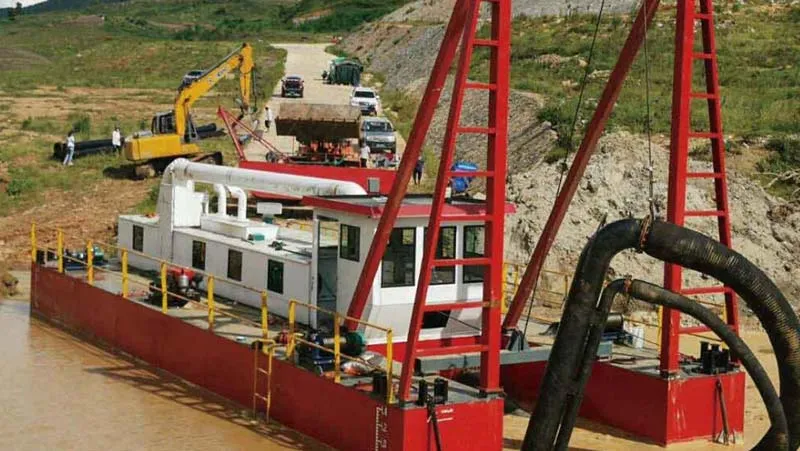

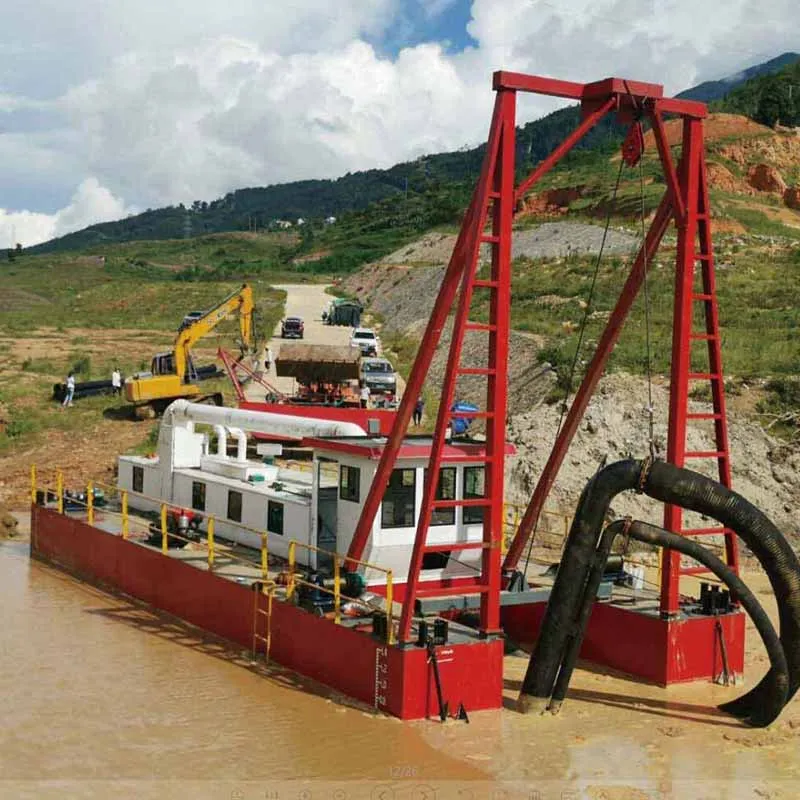

Jet Suction Dredger

Dredging Vessels

Ideal for dredging and sand extraction in rivers, artificial lakes, reservoirs and ports

Dredging Vessels

Jet Suction Dredger

Ideal for dredging and sand extraction in rivers, artificial lakes, reservoirs and ports

Dredging depth: up to 18 meters

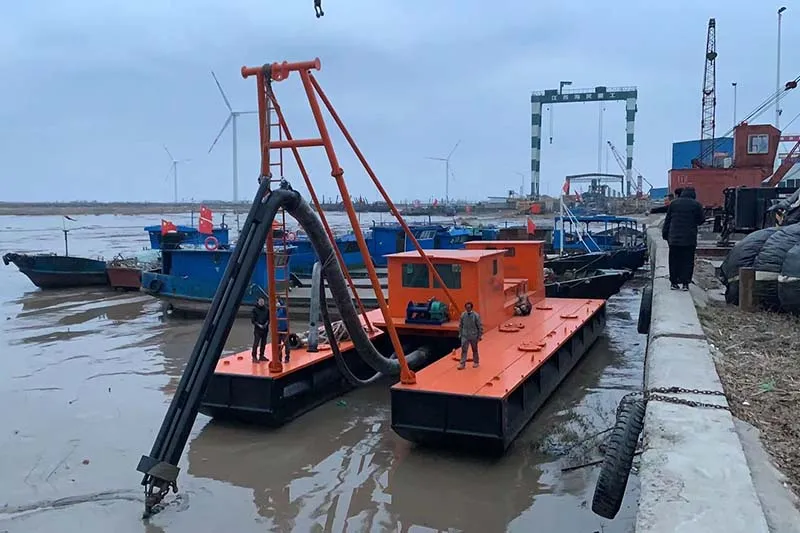

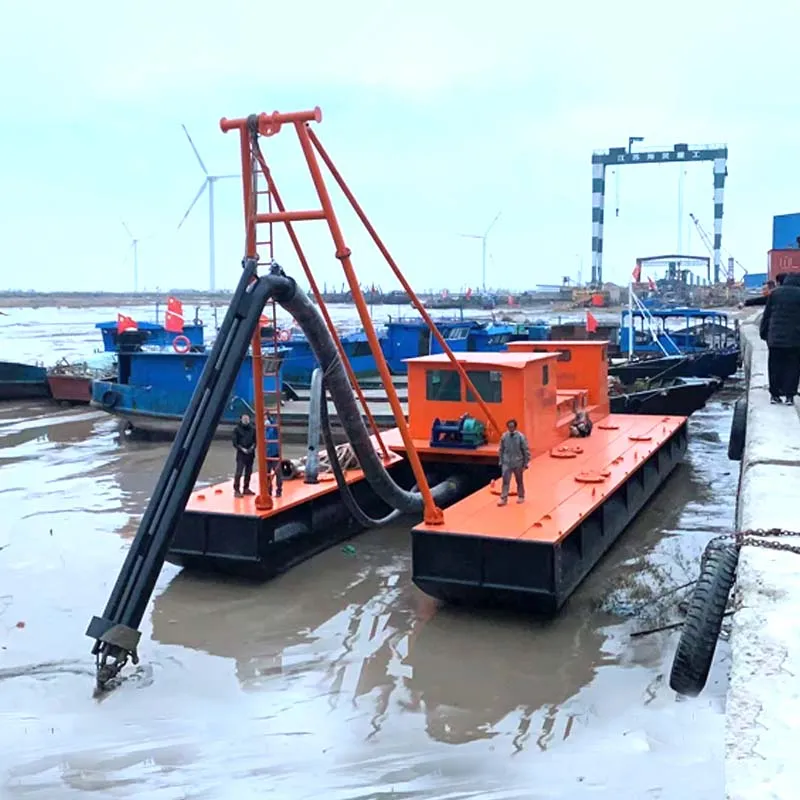

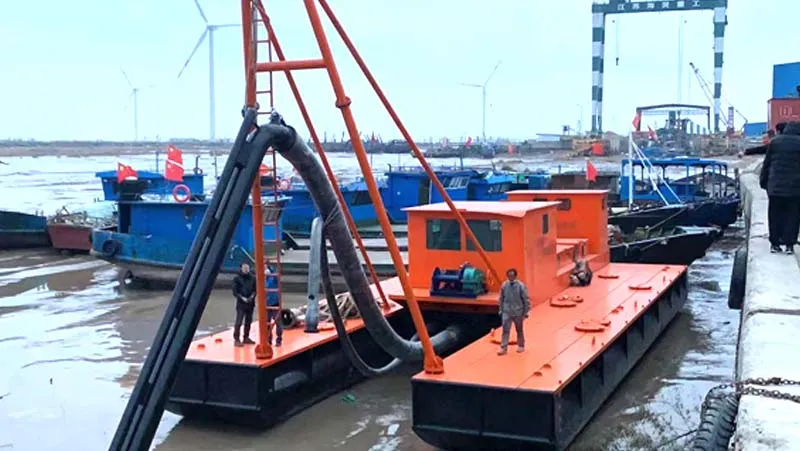

Our Jet Suction Dredger is the perfect solution for your sand extraction needs. It uses a high-pressure water pump to generate powerful jets that break up the sediment at the bottom.

Once the sediment is loosened, the sand pump creates strong suction to draw up the slurry mixture of sand and water, which is then transported through a suction pipe to the vessel’s hold or directly discharged to your desired location.

Request a Quote

Specifications

Model	ZHD-JSD100	ZHD-JSD200	ZHD-JSD300	ZHD-JSD400	ZHD-JSD500	ZHD-JSD650
Length overall	11.0m	13m	15m	20m	25m	30m
Max. capacity	100m³/h	160m³/h	240m³/h	440m³/h	700m³/h	1000m³/h
Engine power	55kW	75kW	120kW	456kW	582kW	895kW
Sand suction pump	8'/6'	10'/8'	12'/10'	16'/14'	20'/18'	28'/24'
Jet pump power	22kW	37kW	55kW	75kW	110kW	185kW
Dredging depth	9m	11m	13m	16m	17m	18m
Water flow	500m³/h	800m³/h	1200m³/h	2200m³/h	3500m³/h	5000m³/h
Hull draft	0.6m	0.7m	0.7m	0.8m	1.2m	1.5m

Features

Simple Structure: Primarily made up of core components such as high-pressure water pumps and sand pumps, the design is straightforward and cost-effective to manufacture.
Ease of Operation: The operation is user-friendly, with the operator simply controlling the high-pressure water pump and sand pump, along with the positioning and movement of the vessel.
Strong Adaptability: Suitable for various water environments, including rivers, lakes, and reservoirs, with high sand extraction efficiency in areas with softer sand layers.
High Sand Extraction Efficiency: Under optimal conditions, it allows for continuous sand extraction operations, with a capacity of 100-1,000 tons per hour.

Detailed Features

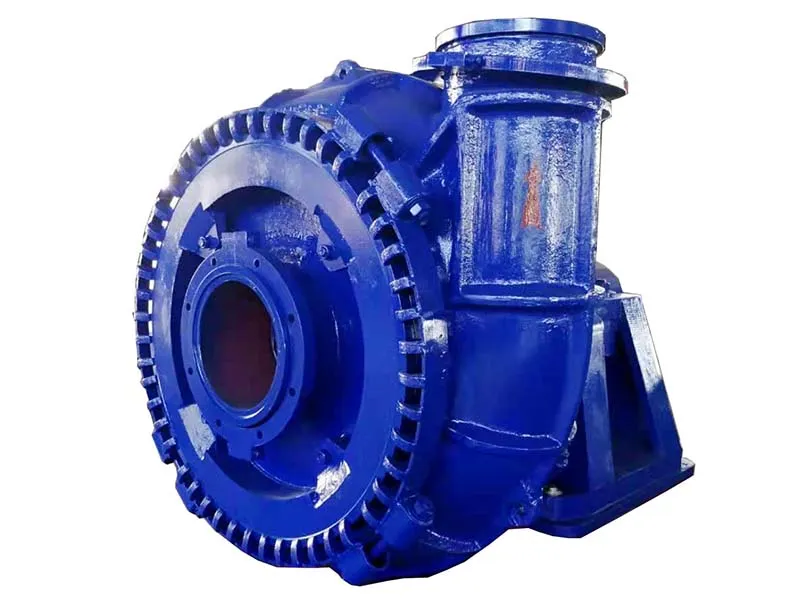

Pump

Brands: Datang, Kingda, Boxin, Shijiazhuang Industrial Pump Factory (SNG)

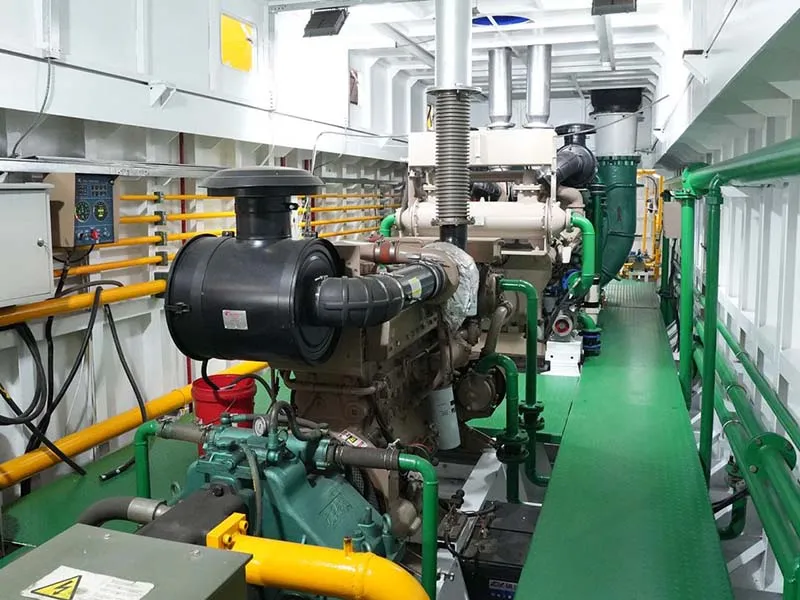

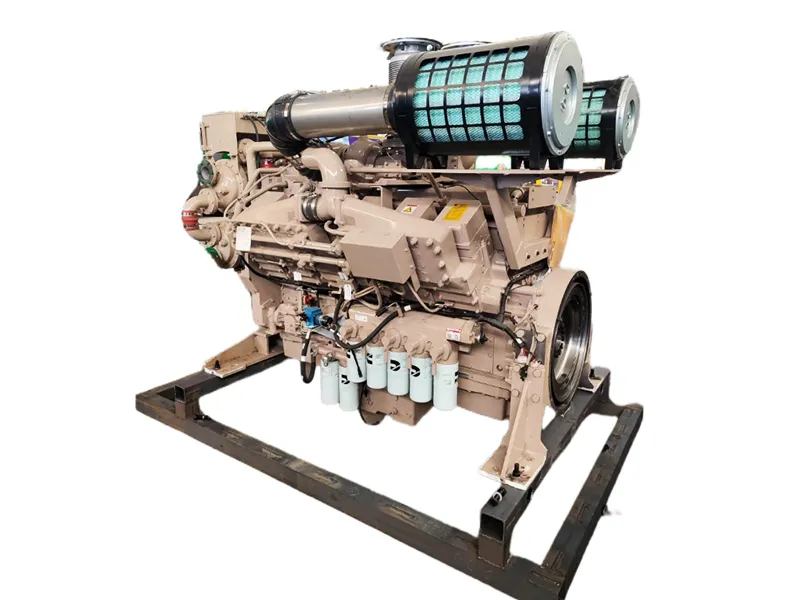

Diesel Engine

Brands: Cummins, Mitsubishi, Weichai

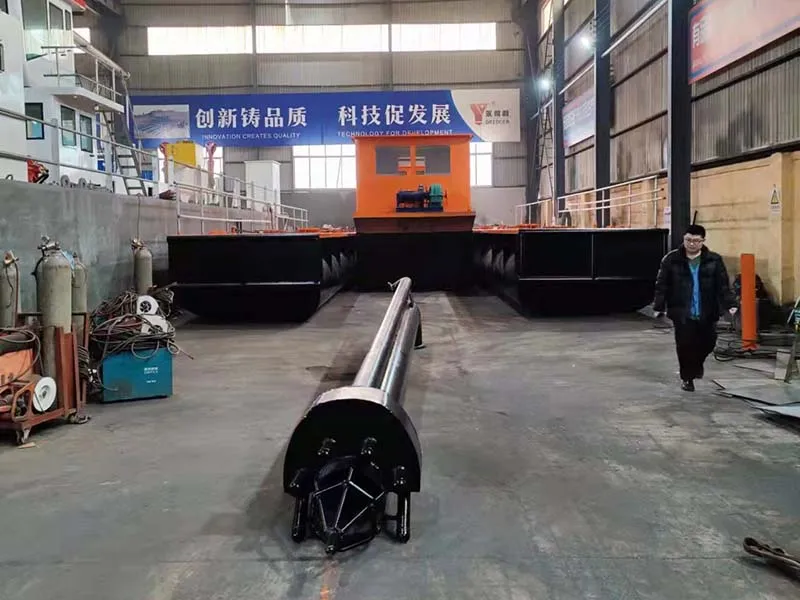

Jet Head

Removable cutter teeth made from high chromium alloy, offering excellent wear resistance.

Hydraulic System

Brands: Rexroth, Vickers, Yuken

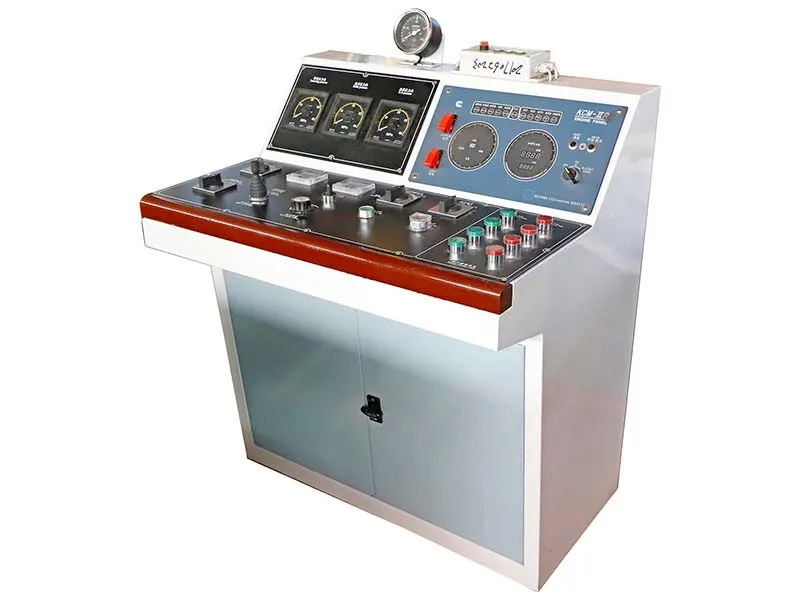

PLC Control System

Brand: Siemens

Customer Case Studies

This dredger is currently in use at a port in Nigeria, where it supports dredging operations with a dredging depth of 20 meters, a flow rate of 2,200 m³/h, and a discharge distance of 1,500 meters. It is especially effective in areas with low gravel content and shallow mud layers, ensuring smooth navigation and operational efficiency.
This dredger, used at a dock in Egypt, has a dredging depth of 25 meters, a flow rate of 3,000 m³/h, and a discharge distance of 2,000 meters. It is powered by a Mitsubishi engine and is currently supporting the dredging of the dock to maintain safe and efficient operations.

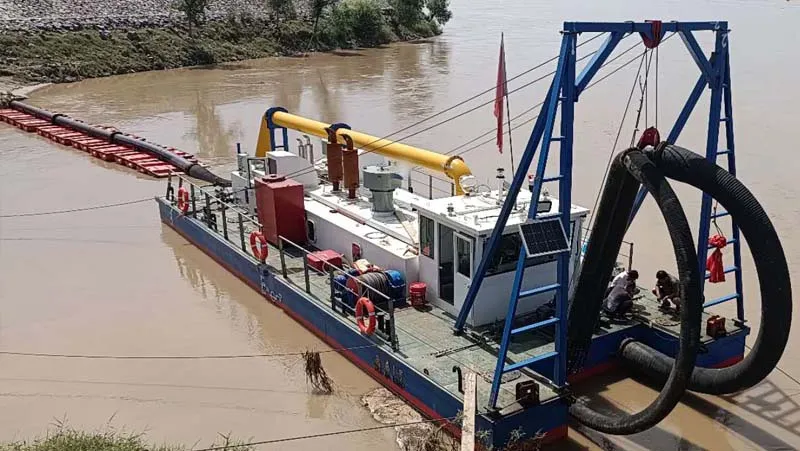

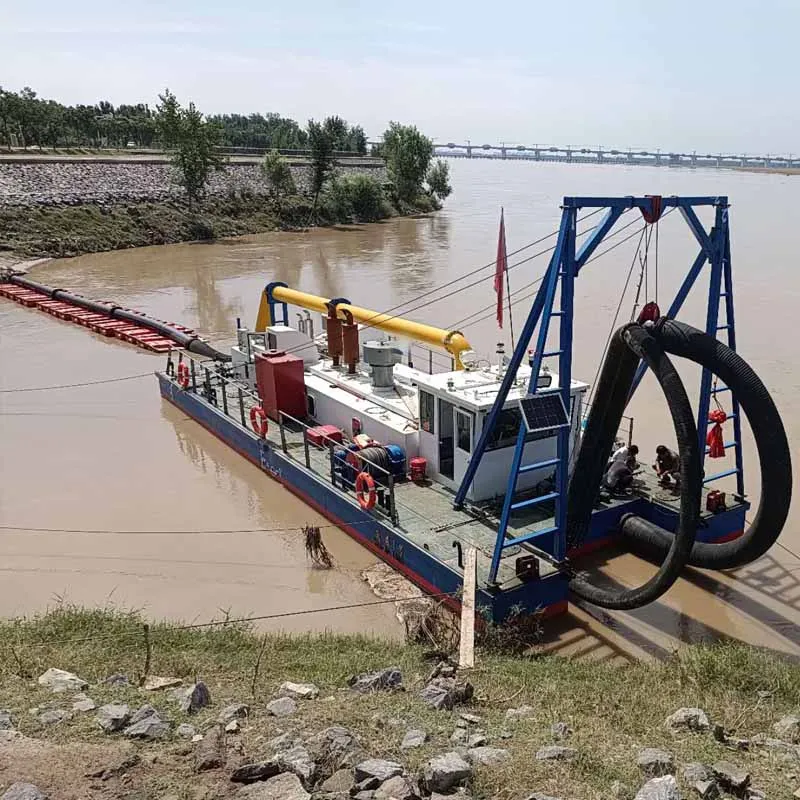

This dredger, used in a river dredging project in China, has a dredging depth of 12 meters, a flow rate of 3,500 m³/h, and a discharge distance of 1,500 meters. Powered by a Weichai engine, it is effectively removing sediment to maintain safe water levels and improve navigation.
