Dredging Components
Cutter Head
Dredging Components

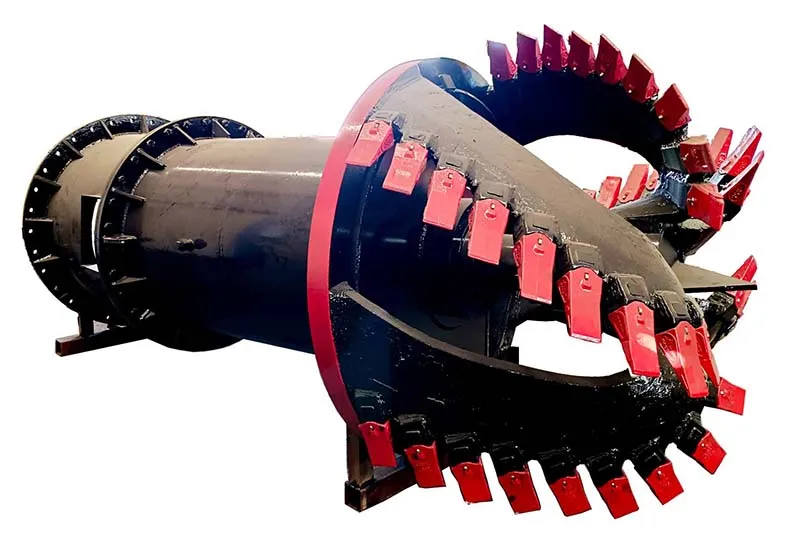

Cutter Head
When it comes to dredging, the quality of your cutter head is essential. Our cutter heads are made from high-manganese steel, known for its excellent wear resistance and toughness. This ensures your equipment remains reliable, even in challenging environments like seabed slurry. Whether you’re working on long-term projects or demanding conditions, our cutter heads are designed to deliver optimal performance.
Specifications
| Model | Inner diameter | Speed | Max. shaft power | Suction pipe diameter |
| 650mm | 0-33r/min | 15kW | 150mm | |
| 850mm | 0-33r/min | 22kW | 200mm | |
| 1100mm | 0-33r/min | 37kW | 250mm | |
| 1200mm | 0-33r/min | 55kW | 300mm | |
| 1500mm | 0-33r/min | 90kW | 450mm | |
| 1800mm | 0-33r/min | 115/170kW | 600mm | |
| 2200mm | 0-33r/min | 375-580kW | 650mm |
